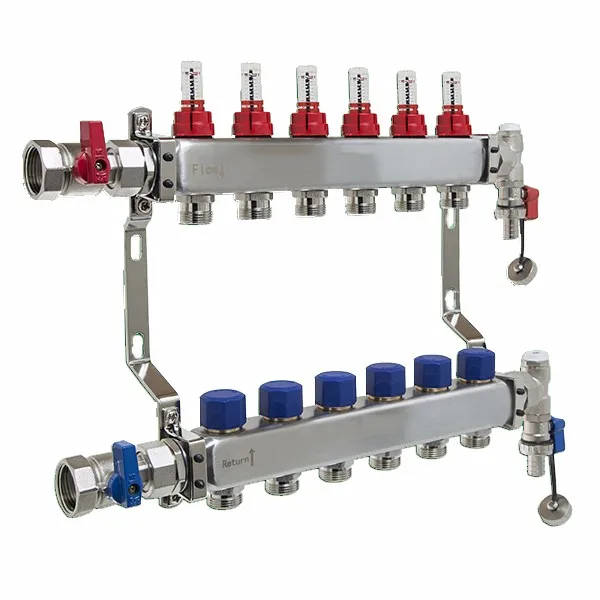

Green-GutenTop 6 Port Stainless Steel Underfloor Heating Pex Manifold
- Place of Origin:CN;ZHE
- Model Number:GT8437
- Brand Name:GREEN VALVES
- Type:Floor Heating Systems
- Product name:Green-GutenTop 6 Port Stainless Steel Underfloor Heating Pex Manifold
- Material:Stainless steel
- Size:G1''
- Port:6
- Application:Manifold for high temperature systems
- Connection:PEX AL PEX pipe,PEX pipe,PERT pipe
- Media:water
- Export Markets:Global
- Package:Standard export package or Customers
- Name:6 Port Stainless steel manifold
Stainless Steel Manifold
* High quality stainless steel for connection of 2-12 circuits possible-20 to 90°C temperature resistant
* Galvanised consoles with sound-insulating inserts* Flow meter (0-6 l/min) in accordance with DIN EN 1264-4, can be shut off in the supply
* Offset arrangement of the connection nipples
* Alternate manifold connection possible
* Pre-assembled on consoles
* 1” connecting ball valve in the supply and return (must be ordered separately)
* Manifold end piece with venting/draining
* Thermostat valve insert with flow volume regulation in the return
* Thermostat valve insert for REHAU actuator in the return
Polymer Manifold
* Modular system for ultimate onsite flexibility
* -20 to 90°C temperature resistant
* Low pressure loss
* Individual circuits can be closed off
* Connection of 2-14 circuits possible
* Easy connection of pipe to manifold without special tool
Features
* 2 x 1″ Manifold barrels with 6 way or outlets,
* 2 x 1/4 Turn Flow Ball valve with easy seal joints,
* 2 x Tee piece manifold connectors with easy seal joints,
* 6 x Adjustable Flow Meters,
* 2 x Air Vents,
* 2 x Fill & Drain connections,
* 2 x Wall brackets ready assembled to the manifold.
Taizhou Green Valves Co.,Ltd is an innovative and enterprising manufacturer depends on the advanced technology and specialized in the production Quick Connector , Ball Valve , Bib Cock , Gate Valve , Angle Valves , Check Valve, Fitting , Thermostatic Valve , etc . In the new product development work, the factory according to the development of science and technology and market demand, strengthen exchanges and cooperation, through the joint development of design, technology introduction, cooperation and development, to enhance the overall research and development capabilities.
The current research and development products are sold to South America, North America, Europe and other places, and a variety of products to obtain national patents and certification , and access to NSF, cUPC, CE certification. Products are handsome in beautiful appearance ,reasonable structure and practical features , suitable for gas , cold , hot water . The powerful technological strength , and 100% to do the full inspection , advanced producing and test equipment to guarantee the products in high quality , we won the domestic and foreign customers trust and welcome by high-quantity and good service .
1. WHAT IS YOUR MOQ ?
Usually our MOQ is 3,000pcs. But we accept lower quantity for your tria order. Please feel free to tell us how many pieces you need, we will calculate the cost correspondingly, hoping you can place large orders after checking quality of our products and know our service.
2. HOW LONG IS THE SAMPLE LEAD TIME ?
For existing sample, it takes 2-3 days. They are free. If you want your own designs, it takes 7-10 days, subject to your designs whether they need new MOLD, etc. Anyway, we will response fast to your request.
3. HOW LONG IS THE PRODUCTION LEAD TIME ?
It takes 35 days for MOQ. We have large production capacity, which can ensure fast delivery time even for bulk.
4. WHAT FORMAT OF THE FILE DO YOU NEED IF I WANT MY OWN DESIGN ?
We have our own designer in house. So you can provide JPG, AI, car or PDF, etc. We will make drawing for mold or printing screen for your final confirmation based on technique.
5. WHAT IS YOUR PAYMENT TERM ?
Our payment is TT 30% deposite and 70% against bill of loading copy of TT. PayPal, Western&Union.
